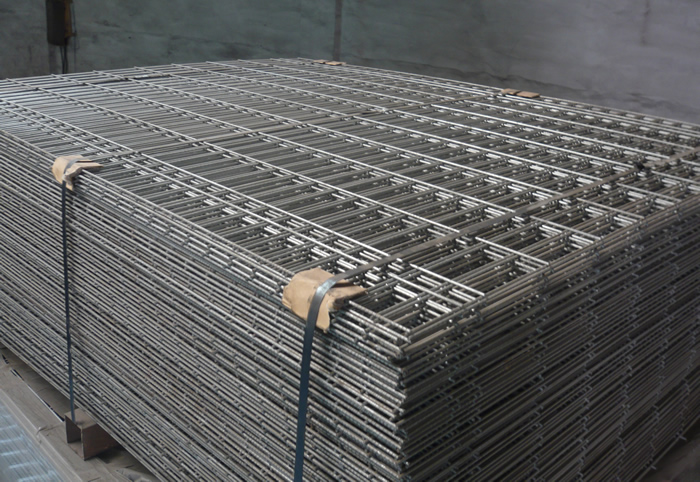

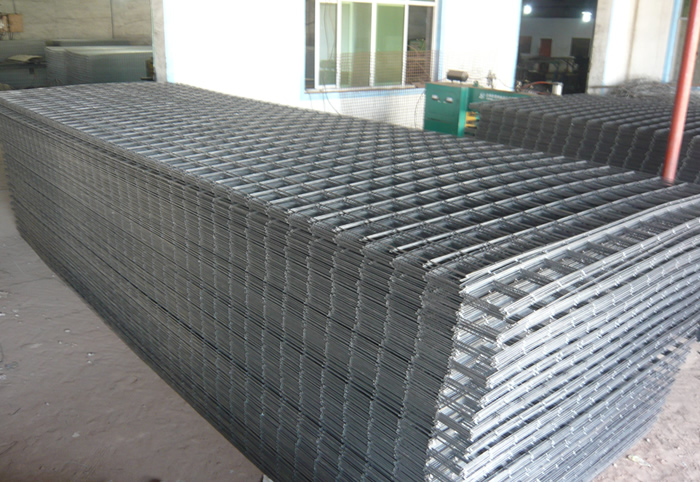

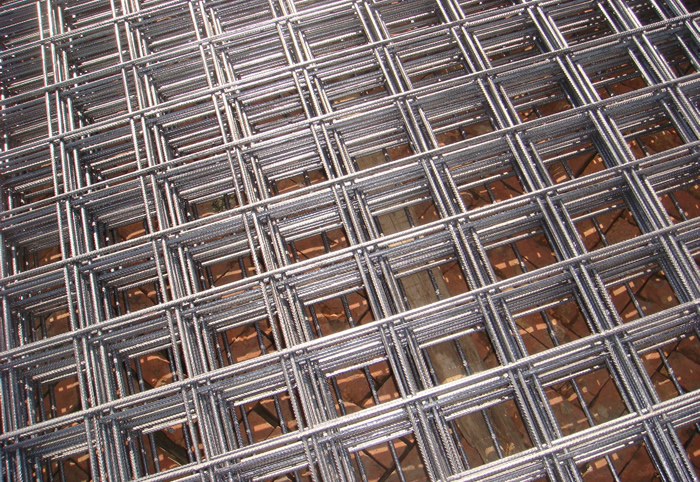

Reinforcing Welded Mesh

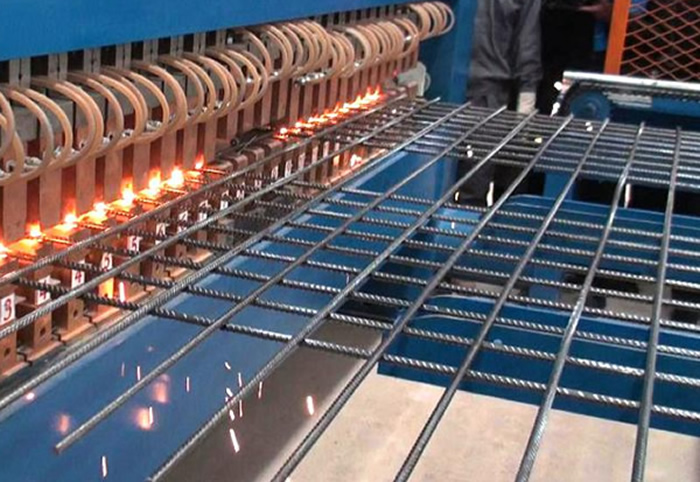

Reinforcing welded mesh is that the high tensile wires are welded into a rectangular mesh grid fabric. The reinforcing welded mesh is generally manufactured according to standard references making for easy site identification, quality control and management. The mesh is manufactured in sheets or rolls resulting in a quick and simple site installation process.
Although generally used in surface beds (concrete floor slabs on fill) and concrete roads, mesh can also be used in suspended floor slabs, concrete walls, culverts / drains and composite brick / concrete retaining walls.
Surface Treatment of Reinforcing Welded Mesh: Electro galvanized or hot-dipped galvanize.
Materials: Low carbon steel wire, stainless steel wire and rebar wire.
Characteristics: even surface, firm structure, precise opening etc. it has the good property of corrosion-resisting and oxidation-Resisting.
Usage: It is widely used on building, food, agriculture etc. For example, it is used on reinforced concrete construction, floor slabs reinforcement, brick wall reinforcement, floor warming etc.
|
Mesh |
Wire Diam. |
||
|
In Inch |
In mm |
Wire Gauge |
In mm |
|
1" × 1" |
25mm × 25mm |
14# - 11# |
2.0mm - 3mm |
|
2" × 1" |
50mm × 25mm |
14# - 8# |
2.0mm - 4mm |
|
2" × 2 " |
50mm × 50mm |
14# - 8# |
2.0mm - 4mm |
|
3" × 2 " |
75mm × 50mm |
14# - 6# |
2.0mm - 5mm |
|
3" × 3 " |
75mm × 75mm |
14# - 6# |
2.0mm - 5mm |
|
4" × 2 " |
100mm × 50mm |
14# - 4# |
2.0mm - 6mm |
|
4" × 4 " |
100mm × 100mm |
14# - 4# |
2.0mm - 6mm |
|
5" × 5 " |
125mm × 125mm |
14# - 4# |
2.0mm - 6mm |
|
6" × 6 " |
150mm × 150mm |
14# - 4# |
2.0mm - 6mm |
When you contact us, please provide your detail requirements. That will help us give you a valid quotation.
