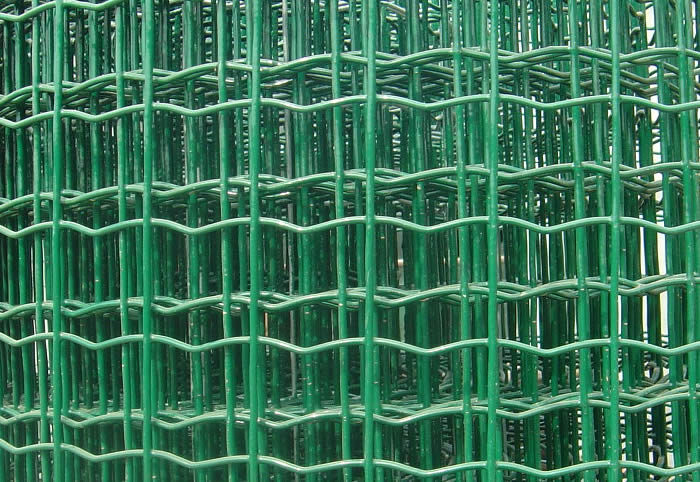

Holland Wire Mesh
Holland wire mesh is also known as Dutch Mesh or Wave Welded Mesh. It can be made of black mild steel wire or galvanized wire, quality welded on each joint point, PVC PE or PP powder coated the surface by sulfide treatment, with good adhesion, anticorrosion, flittering luster, etc. The surface treatment also can be electro galvanized, hot dipped galvanized.
Euro fence is also known as dutch mesh or wave welded mesh. It can be made of black mild steel wire or galvanized wire, quality welded on each joint point, PVC PE or PP powder coated the surface by sulfide treatment, with good adhesion, anticorrosion, flittering luster, etc. The surface treatment also can be electro galvanized, hot dipped galvanized.
Material:
- High quality iron rod
- Stainless steel wire
- Low carbon steel wire
- PVC coated wire
Surface Treatment:
PVC, PE or PP powder coated, electro galvanized, hot dipped galvanized.
Weaving and Characteristic:

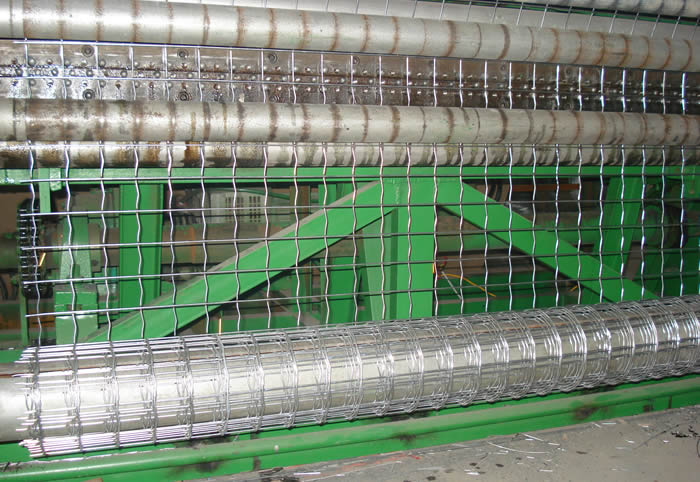

The warp bended beforehand is welded with the weft with the surface treated by galvanizing, hot-galvanizing, PVC coating, PVC plating and they have such characteristics as beautiful appearance, smooth mesh, firm welding, good beforehand bending property, steadiness, good anticorrosion and resistance to aging.
Application:
Euro fence are used in high quality wire rod as raw material, then welded panel or rolled fence. After galvanization and PVC dipped coating, it can resist the corrosive and ultraviolet radiation very strongly.
Euro fence is beautiful and solid, easy to transport and install, widely used for fencing or enclosure in the highway, railway, airport, housing area, garden, park, etc.
|
Height |
BWG |
Wire Diameter |
Opening |
Fixed Link |
Length of mesh (2.5m) |
Length (2.5m) |
|
Weight (kg/set) |
Weight (kg/piece) |
|||||
|
60 |
10#/8# |
3.24 |
5×12 |
1.9 |
6.5 |
8.6 |
|
80 |
10#/8# |
3.24 |
5×12 |
2.3 |
7.5 |
9.9 |
|
100 |
10#/8# |
3.24 |
5×12 |
2.7 |
8.5 |
11.2 |
|
120 |
10#/8# |
3.24 |
5×12 |
3.1 |
9 |
11.9 |
|
150 |
10#/8# |
3.24 |
5×12 |
3.7 |
11 |
14.5 |
|
180 |
10#/8# |
3.24 |
5×12 |
4.3 |
12.5 |
16.5 |
|
200 |
10#/8# |
3.24 |
5×12 |
4.7 |
13.5 |
17.8 |
When you contact us, please provide your detail requirements. That will help us give you a valid quotation.
